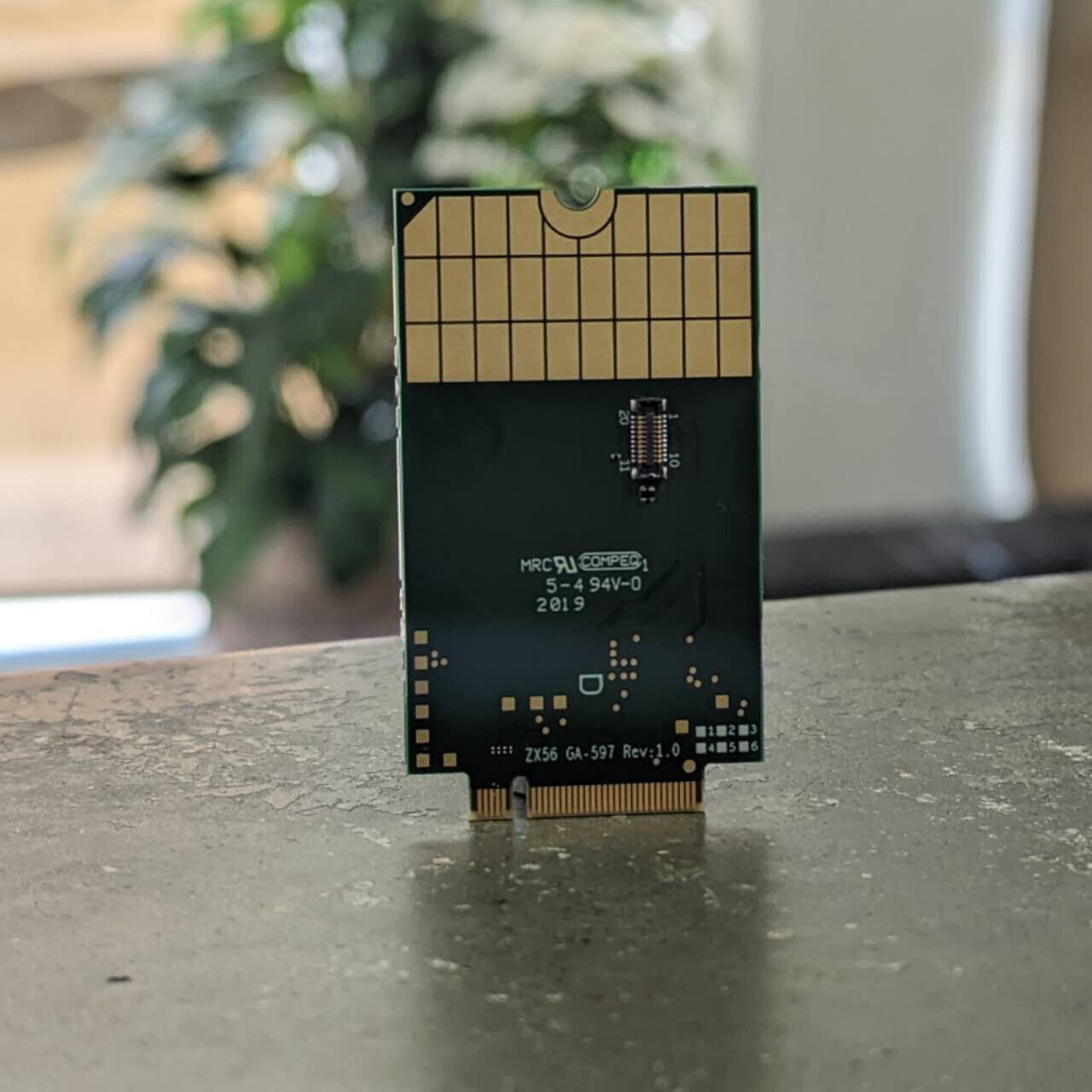

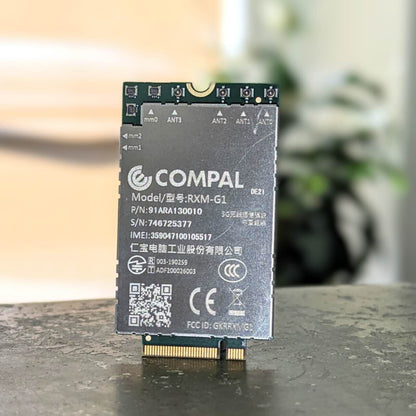

COMPAL RXM-G1 5G M.2 LTE WCDMA Module 91ARA130010 Wide Bandwidth Cortex-A7

MODEL: RXM-G1

P/N: 91ARA130010

Specifications:
Platform :QCT SDX55 CortexA7 up to 1.5GHz
Memory : 4Gb NAND (ONFI) with 4Gb LPDDR4X(1.8GHz) MCP
Operating: Band 5G NR Sub6 : n2, , n41, n66, n71
5G NR_mmWave: n258, n260, n261 (Using SW to inactive 5G mmWave fuction) LTE FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B66, B71
LTE FCC Downlink only: B29
LTE TDD: B41, B48
LTE TDD Downlink only: B46
WCDMA/HSPA+: B1, B2, B4, B5, B8
Uplink 5G sub-6 1CC; 100MHz;
5G mmWave 8CC; 800MHz;MIMO 2x2 HPUE ( Class 2) B41
DL 4x4 MIMO B2, B4, B7, B25, B30, B41, B48, B66
n2, n41, n66
aggregation ULCA, DLCA and EN-DC
SRS antenna switching n41 : 1T2R(NSA)
