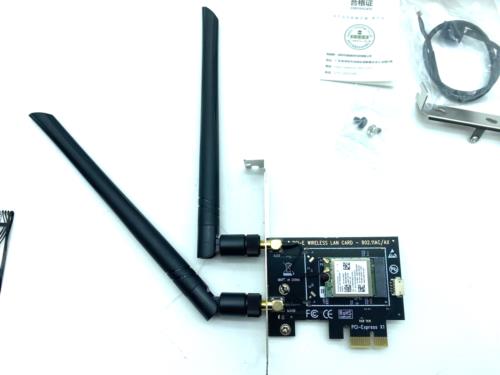

Desktop PCIe wifi Adapter Mediatek WIFI 6E 802.11AX Bluetooth 5.2 MT7922 AX2400
Desktop PCIe wifi Adapter Mediatek WIFI 6E 802.11AX Bluetooth 5.2 MT7922 AX2400
802.11AX WIFI 6E NGFF/M.2 Wifi Module with Mediatek MT7922A22M
802.11A/B/G/N+AC/AX 1733/2400 Mbps Tri BAND + Bluetooth 5.2
Wireless Lan Module
2.4 Ghz and 5 Ghz 802.11N/AC WLAN is supported , also 5 Ghz 802.11AX and 6-7Ghz 802.11AX !
supports up to 160mhz Channelbandwidth
high sensitivity
high TX Power
High Data Transmission Speed, up to 2400 Mbps at 802.11AX , WIFI6 Mode
High Data Transmission Speed, up to 1733 Mbps at 802.11AC , WIFI5 Mode
High Data Transmission Speed, up to 300 Mbps at 802.11N , WIFI4 Mode
very good compatibility
Strong encryption with WPA/WPA2/WPA3 Protocol
Support Wave2 2x2 MIMO Technology
Driver Support: Windows 10/11 und Linux (mt76, Kernel +5.16.x) Treiber
Fast Roaming Support 802.11r, 802.11v, 802.11w, 802.11k
MediaTek Filogic 330
MediaTek Filogic 330 (MT7922) is a single-chip that integrates Wi-Fi 6/6E and Bluetooth 5.2 for connectivity in various consumer electronics devices and notebooks. Filogic 330 enables high-performance, highly-reliable, and power efficient connectivity solutions in the smallest form factor. For example, in the notebook market segment, Filogic 330 can fit in NGFF 1216 module size.
MediaTek Filogic 330 provides 2T2R Wi-Fi 6/6E connectivity for triple-band (2.4GHz, 5GHz, and 6GHz selectable) support, along with advanced Wi-Fi features such as DL MU-MIMO, MU-OFDMA, QoS, Wi-Fi security up to WPA3, and integrated Front-end Module (iFEM) support for LNA and PA functionality. Advanced Wi-Fi / Bluetooth coexistence ensures Wi-Fi connectivity remains reliable even when Bluetooth devices are also in use.
Specifications
Wi-Fi
IEEE 802.11
Wi-Fi 6 (a/b/g/n/ac/ax), Wi-Fi 6E (a/b/g/n/ac/ax)
Wi-Fi Frequency
2.4GHz, 5GHz, 6GHz
Antenna
2T2R
Data Throughput
Up to 1.9Gbps
Functions and Features
MAC
Yes
RF
Yes
BBP
Yes
BBP Feature
Dual band dual concurrent, MU-MIMO clients, support MCS rate up to 11, complete Wi-Fi Alliance Wi-Fi-6 Release 2 featureset
Interfaces
PCIe Gen 2 and USB 2.0
