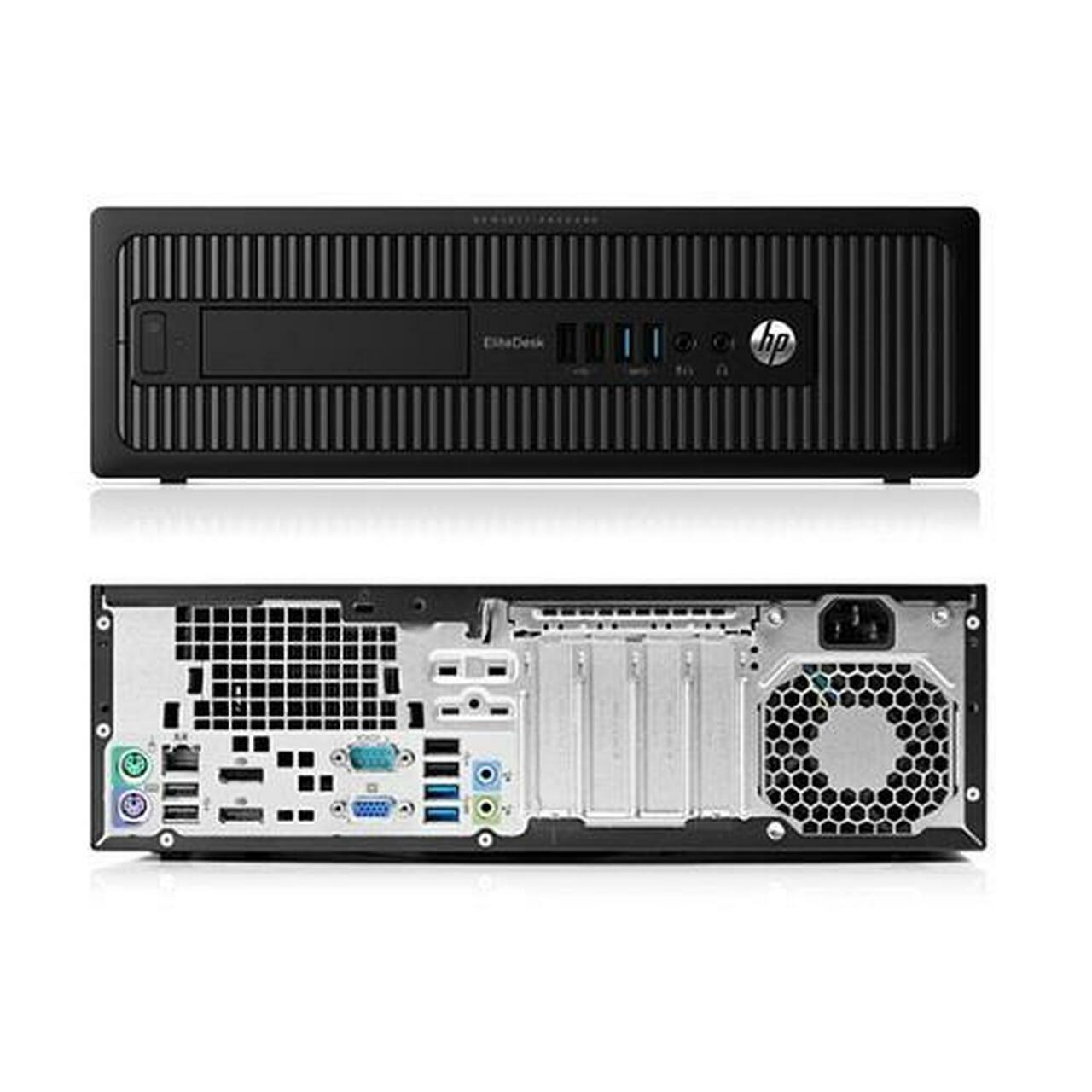

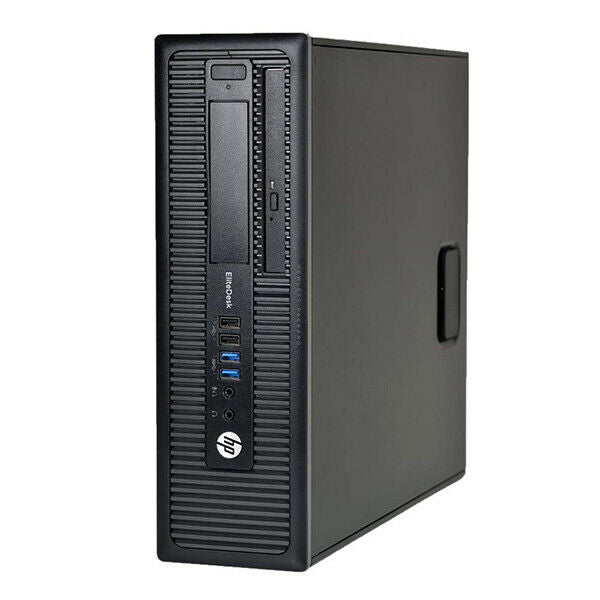

Gaming PC desktop HP 800 G1 SFF Computer i7 32GB R7-250 512GB SSD Windows10 WIFI

Color

Jack black

Processors

• Intel Xeon processor E3-1200 v3 family (Z230)
• 4th generation Intel Core™ processor family
• Dual Core Intel Pentium Processors (Z230)

Expansion slots

• 1 PCIe Gen3 x16 slot
• 1 PCIe Gen2 x4 slot /x16 connector
• 1 PCIe Gen2 x1 slot/x4 connector
• 1 PCIe Gen2 x1 slot

Expansion bays

• 1 external half height 5.25" bay
• 1 shared internal/external 3.5" bay.
• 1 internal 3.5" bay
• 1 internal 2.5" bay

Front I/O

2 USB 3.0, 2 USB 2.0, 1 Headphone, and 1 Microphone.

Internal I/O

1 USB 3.0 and 3 USB 2.0 ports available as 2 separate 2 x 10 (3.0 x1, 2.0 x1) and 2 x 5 (2.0 x2) header: supports one HP Internal USB 2.0 Port Kit and one USB 3.0 Media card reader.

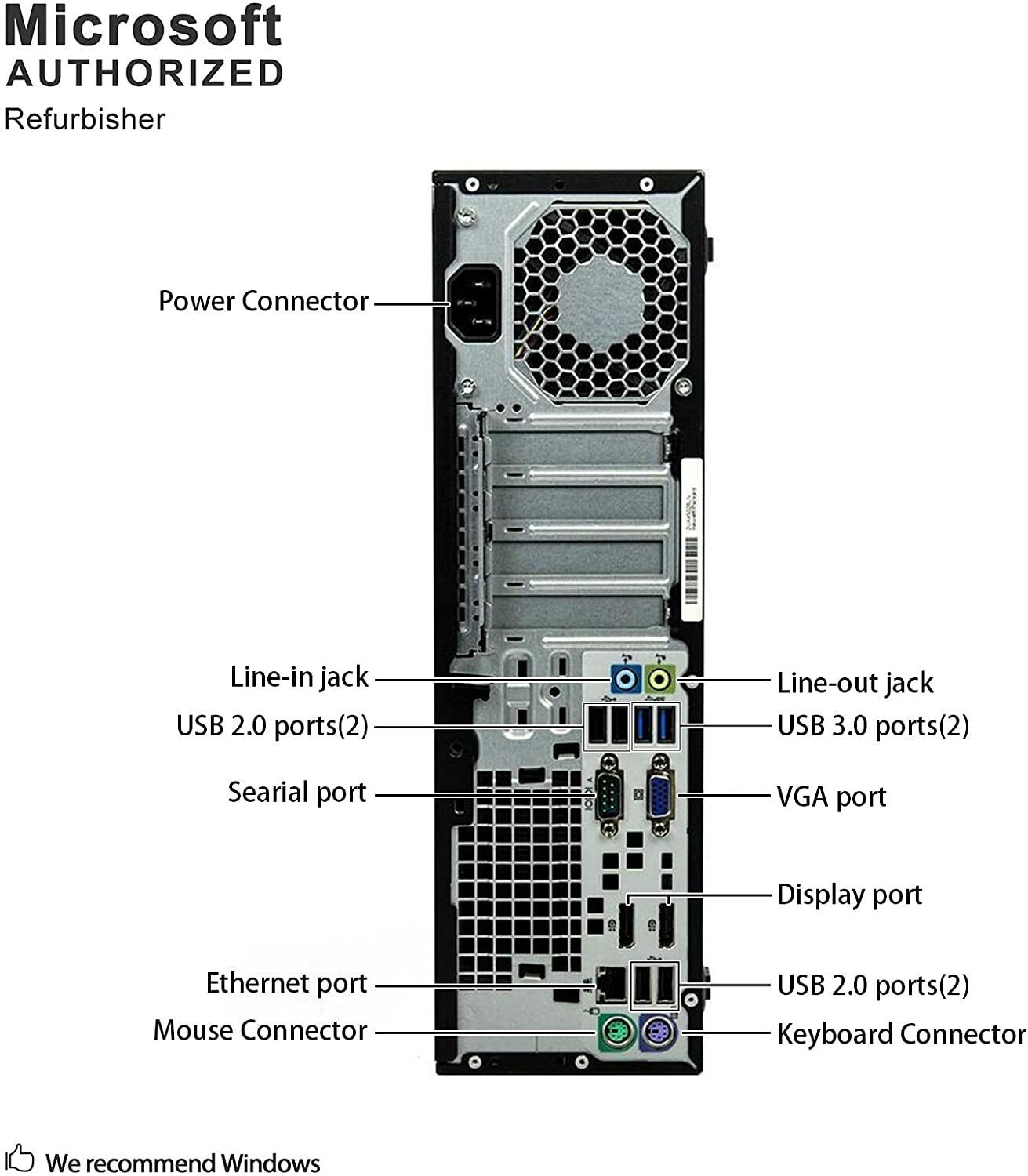

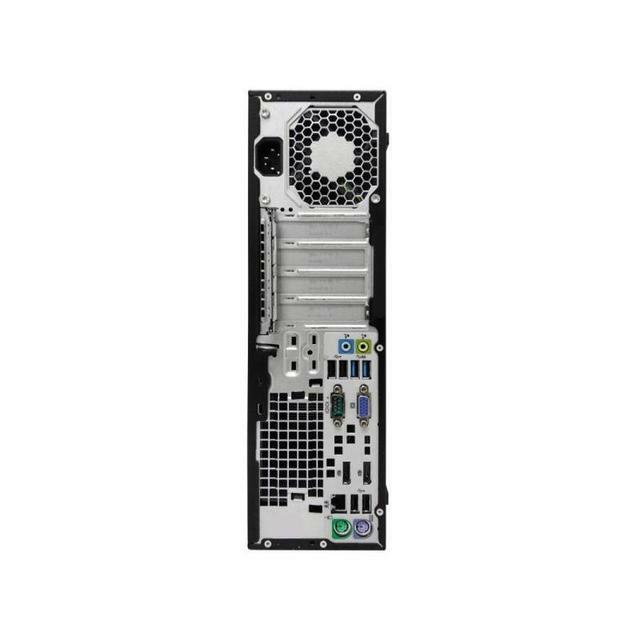

Rear I/O

3 Displayport (DP 1.2) outputs from Intel HD graphics (available on specific processors only); 2 USB 3.0 ports, 4 USB 2.0 ports, 2 serial ports (1 standard, 1 optional), 1 parallel port (optional), 2 PS/2, RJ-45 (LoM), 1 audio Line-in, and 1 audio Line-out; 2 IEEE 1394b ports (optional).

Interfaces supported

14-in-1 Media Card Reader (optional)

Power supply

240 watts wide-ranging, active Power Factor Correction, 92% Efficient

Chipset

Intel C226 chipset

Memory

4 DIMM slots, supporting up to 32GB ECC/non-ECC, DDR3 1600 MHz

Form Factor

2.713 inches in height × 6.150 inches in length

Graphics Controller

NVIDIA NVS 310

Bus Type

PCI Express x16, 2.0 compliant

Memory

• Size: 512MB DDR3
• Clock: 875Mhz
• Memory Bandwidth: 14GB/s

Connectors

2 x DisplayPort 1.2

Maximum Resolution

Up to 2560 x 1600 (digital display) per display.

Image Quality Features

The following video formats are supported:

• MPEG2
• MPEG4 Part 2 Advanced Simple Profile
• H.264 SVC codec support
• Support for 3D Blu Ray
• VC1
• DivX version 3.11 and later
• MVC

Display Output

DisplayPort output:

• Drives two DisplayPort enabled digital display at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310 graphics card
• Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort 1.2 multi stream topology technology.

DVI-D output:

• Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors
• Drives two digital display at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors

HDMI output:

• NVS 310 is capable of driving two high definition (HD) panels up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort to HDMI cable adaptors

VGA display output:

• Drives two analog display at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA cable adaptors

Form Factor

2.713 inches in height × 5.7 inches in length

Graphics Controller

• NVIDIA NVS 315 (using GF119-825 GPU)
• Number of Cores: 48 CUDA cores
• Max. Power: 19.3W
• Cooling Solution: Active fan heatsink

Bus Type

PCI Express x16, 2.0 compliant

Memory

• Size: 1GB DDR3
• Clock: 875Mhz
• Memory Bandwidth: 14GB/s

Connectors

DMS-59 output

Maximum Resolution

• DMS-59 to VGA: 2048 x 1536 @ 85Hz
• DMS-59 to DVI: 1980 x 1200 @ 60Hz
• DMS-59 to DP: 2560 x 1600 @ 60Hz

Image Quality Features

• MPEG2
• MPEG4 Part 2 Advanced Simple Profile
• H.264 SVC codec support
• Support for 3D Blu Ray
• VC1
• DivX version 3.11 or later

Display Output

Up to 2 displays in the following configurations:

DisplayPort output:

• Drives two DisplayPort enabled digital displays at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected via the DMS-59 to DP adapter.

DVI-D output:

• Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DMS-59 to DVI-D single-link cable adaptor

VGA display output:

• Drives two analog display at resolutions up to 2048 × 1536 at 85 Hz using DMS-59 to VGA cable adaptor.

Shading Architecture

Shader Model 5.0

Supported Graphics APIs

DX11, OpenGL 4.3

Available Graphics Drivers

• Microsoft Windows 8
• Microsoft Windows 7 Professional (64-bit and 32-bit)
• Microsoft Windows XP Professional (64-bit and 32-bit)
• Red Hat Enterprise Linux(RHEL)
• SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit)



Form Factor

Low Profile, 2.713 inches × 6.3 inches, single slot

Graphics Controller

• NVS 510 GPU
• Core Clock: 797 Mhz
• Memory Clock: 891 Mhz
• CUDA Cores: 192

Bus Type

PCI Express x16, Generation 2.0

Memory

2GB DDR3

Connectors

• Four mini-DisplayPort
• Four mini-DisplayPort to DisplayPort adapters included. (DisplayPort to DVI-D, DisplayPort to VGA, DisplayPort to HDMI, and DisplayPort to Dual-Link DVI adapters available as separate accessories.

Maximum Resolution

Mini-DisplayPort connectors support ultra-high-resolution panels (up to 3840 x 2160 @ 60Hz)

Image Quality Features

10-bit internal display processing, including hardware support for 10-bit scan out

Display Output

DisplayPort with Multi-Stream Technology (MST) and High Bit Rate 2 (HBR2) support.

Digital Display Support.

DisplayPort Output:

• Drives four DisplayPort enabled digital display at resolutions up to 3840 × 2160 at 60 Hz with reduced blanking, when connected natively using the 4 DisplayPort connectors on the NVS 510 graphics card.
• DisplayPort Multi-Stream Topology (MST) Technology: Supports various combinations of display resolutions and number of displays when using DisplayPort multi stream topology technology - up to a maximum of 4 monitors at a resolution of 1920 × 1200 at 60 Hz with reduced blanking.

• Drives four digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors.
• Drives four digital displays at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors.

HDMI Output

• The NVS 510 graphics board is capable of driving four high definition (HD) panels up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort to HDMI cable adaptors.

• Drives four analog displays at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA cable adaptors.

Supported Graphics APIs

• Full Microsoft DirectX 11, Shader Model 5.0 support
• Full OpenGL 4.3 support

Available Graphics Drivers

• Genuine Windows 7 Professional (64-bit and 32-bit)
• Microsoft Windows XP Professional (64-bit and 32-bit)
• Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation
• SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit)

Power Consumption

33.4 Watts

Form Factor

Full height, half length (full-height bracket included)

Graphics Controller

AMD FirePro™ V3900 professional graphics

Bus Type

PCI Express® x16, Generation 2.1

Memory

1GB DDR3 memory

Maximum Resolution

2560x1600 per display (5120x1600 max. horizontal resolution)

Display Output

• 1 DisplayPort® 1.2
• 1 Dual-link DVI

Shading Architecture

Shader Model 5.0

Supported Graphics APIs

OpenCL™ 1.1, DirectX® 11 and OpenGL 4.2

Available Graphics Drivers

• Genuine Windows® 7 Professional (64-bit and 32-bit)
• Genuine Windows Vista® Business (64-bit and 32-bit)
• Microsoft® Windows XP® Professional (64-bit and 32-bit)
• Red Hat Enterprise Linux(RHEL)
• SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit)

Power Consumption

Less than 50W

Form Factor

2.713 inches × 5.7 inches, single slot

Graphics Controller

NVIDIA Quadro 410

Bus Type

PCI Express x16, 3.0 compliant

Connectors

• One dual-link DVI-I connector
• One DisplayPort connector

Maximum Resolution

Up to 2560 x 1600 (digital display) per display.

RAMDAC

400 MHz integrated RAMDAC

Display Output

• Maximum resolution over DisplayPort: 2560 × 1600 × 32 bpp at 60 Hz (reduced blanking)
• Maximum resolution over DVI port: 2560 × 1600 × 32 bpp at 60 Hz (reduced blanking)
• Maximum resolution over VGA (through DVI to VGA cable): 2048 × 1536 × 32 bpp at 85 Hz

Shading Architecture

Shader Model 5.0

Supported Graphics APIs

DX11, OpenGL 4.2

Available Graphics Drivers

• Genuine Windows 7 Professional (64-bit and 32-bit)
• Microsoft Windows XP Professional (64-bit and 32-bit)
• Red Hat Enterprise Linux(RHEL)
• SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit)

Form Factor

2.731" H x 6.3" L

Graphics Controller





• NVIDIA Quadro K600 Graphics Card
• Kepler GK107 GPU
• 192 CUDA cores
• Max Power: 41 Watts

Bus Type

PCI Express 2.0 x16

Memory

• 1 GB GDDR3, 891 Mhz
• 128-bit memory I/O path
• 29 GB/s memory bandwidth

Connectors

• 1 DL-DVI(I) output, 1 DisplayPort output
• CTO: No video cable adapter included
• AMO: One DP-to-DVI adapter included with card

Display Output

VGA:

• Requires use of DVI-to-VGA and/or DP-to-VGA video cable adapters
• 400 Mhz integrated RAMDAC
• Max resolution: 2048 x 1536 x 32 bpp @ 85 Hz

DL-DVI(I):

• Max resolution: 2560 x 1600 x 32 bpp @ 60 Hz

SL-DVI(I):

• Max resolution: 1920 x 1200 x 32 bpp @ 60 Hz

DisplayPort:

• Supports HBR2 and MST
• Max resolution: 3840 x 2160 x 30 bpp @ 60 Hz (only one monitor can be connected to the Quadro K600 DisplayPort connector at this resolution)
• Max number of daisy-chained monitors: 2

Shading Architecture

Full Microsoft DirectX 11 Shader Model 5.0

Supported Graphics APIs



Supported Graphics APIs

• OpenGL 4.3
• DirectX 11
• API support includes
• CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran

Available Graphics Drivers

• Windows 8 Pro 64-bit
• Windows 8 (China) 64-bit
• Genuine Windows 7 Professional (64-bit and 32-bit)
• Red Hat Enterprise Linux (RHEL) 5 Desktop/Workstation (64-bit)
• Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation
• SUSE Linux Enterprise Desktop 11 (64-bit)
