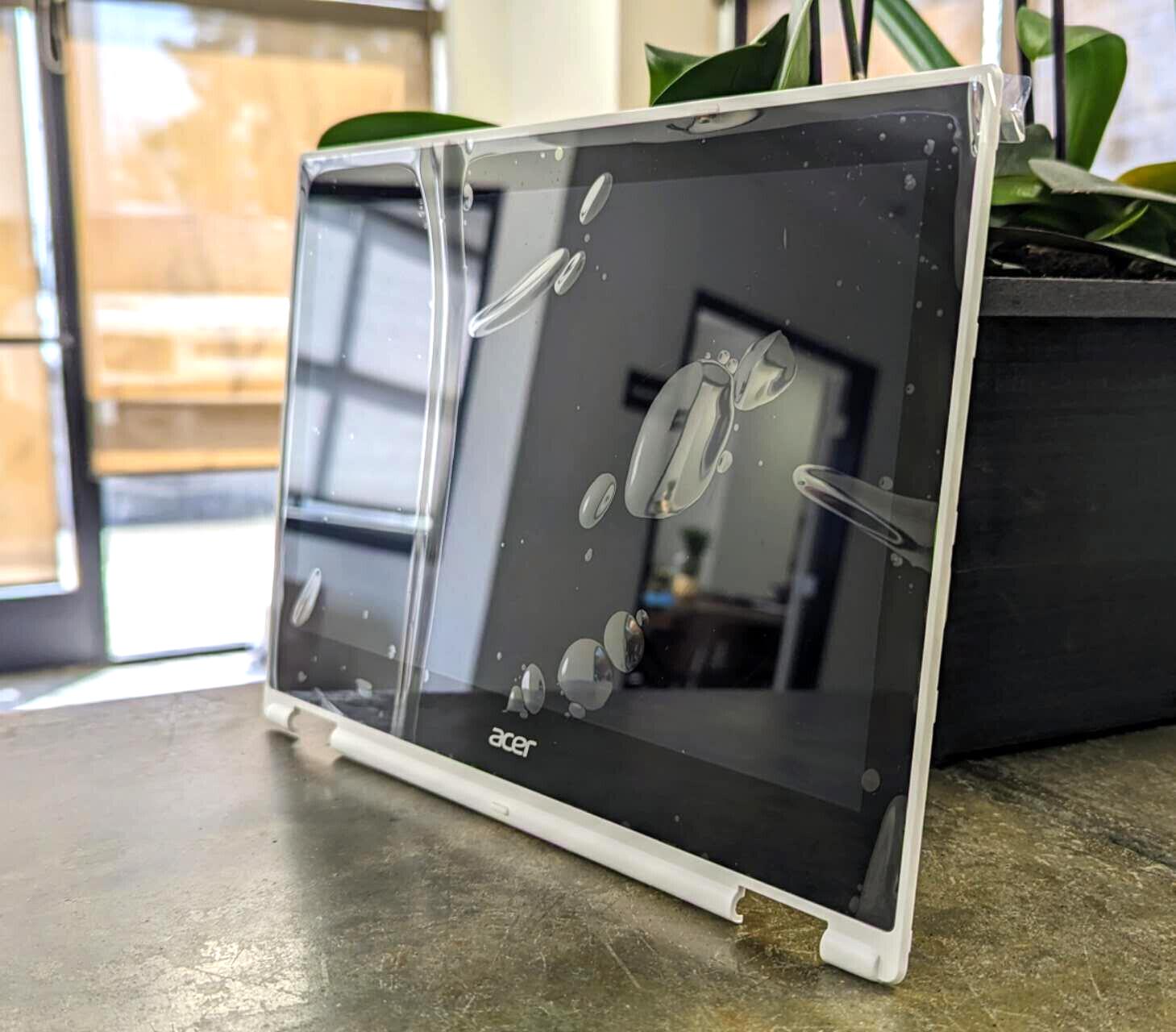

NEW ACER CHROMEBOOK R11 C738T CB5-132T B116XAN04.1 LCD SCREEN WITH FRONT GLASS
NEW ACER CHROMEBOOK R11 C738T CB5-132T B116XAN04.1 LCD SCREEN WITH FRONT GLASS
Regular price
$25.88 USD
Regular price
Sale price
$25.88 USD
Unit price
per
Shipping calculated at checkout.
NEW ACER CHROMEBOOK R11 C738T CB5-132T B116XAN04.1 LCD SCREEN WITH FRONT GLASS

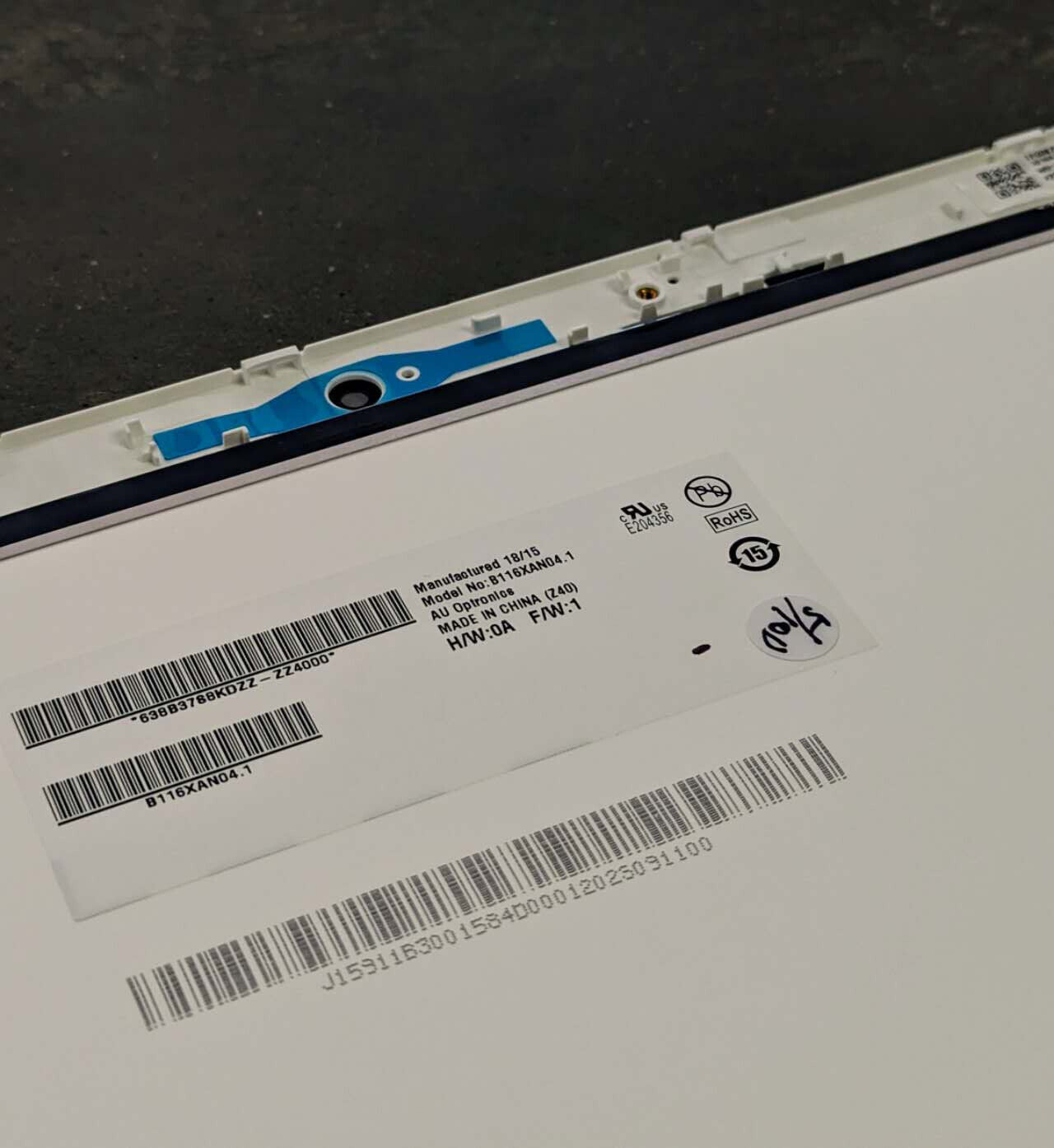

B116XAN04.1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 268(W)×168(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B116XAN04.1 can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B116XAN04.1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
On Mar 13, 2024 at 15:08:27 PDT, seller added the following information:
B116XAN04.1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 268(W)×168(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B116XAN04.1 can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B116XAN04.1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
